Wed April 04 - general, Sat April 06 - die hards Wed April 11 - general, Sat April 14 - 2nd Sat., - Volunteer Day Wed April 18 - general, Wed April 25 - general, Sat April 28 - 4th Sat.
Wed April 04 - general
- Present were Ron Williams, Frank King, Bob Erickson, Allen Palmer, Chuck Kantmann, Joe Preston. Robert Garner (brought the bagels as usual :-))) and Chuck's 14 year old grandson were there for about an hour.
- e-mail from Frank King
Since Bill Flora was out today I stole the feed knives from the punch side of the 1402 and put them on the 083 sorter. The dang thing kept on jamming with the same symptoms. Card turning sideways more than the feed path will allow. (column 1 getting behind column 80). So, my theory is all wet or at least very damp about the feed knifes. But, for the life of me I can't figure it out right now. But I will. I better before Bill gets back and finds the knifes are missing on his punch unit. I sent the 083 feed knives to Grant via Allen so he can sharpen them up. They are worn badly which was verified by Bob Erickson.
Chuck's grand son, Ian came by today to hitch a ride from Mountain View to Morgan Hill. It's a good thing, cause I lost the nuts and washers from the feed knifes from the 1402 and his sharp eyes found them, along with a few extra washers we have dropped from time to time. I think he is about 14ish. Maybe we can get him on the team.
- - - - - - Ron Williams provided the following - - - -
- A Register latches, some were rather slow - output fast and inverted not-output slow, - playing around with it.
- Some upper memory addresses dead - even hundreds 8000 to 11999. 8000 - 8009 bad, 8200-8209 bad, ... up through 11,999
Bob Feretich and Ron Crane figured previous addressing problem - maybe they will have to work on this one.
- Ron is saving a printer ribbon re-inking opportunity for Ed Thelen :-((
Sat April 07 - die hards - or maybe "energizer bunnies"?Report by Mike Cheponis
I needed to help with the PDP-1 demonstrations on Saturday the 7th and I stopped by the 1401 room afterward, and lo and behold Ron Williams was there with scope a'blazing, debugging the "Z" instruction (MCS - Move Characters and Suppress Zeros, which is how his "powers of N" demo program prints the numbers). So I stayed a bit and generally lowered Ron's productivity.
Still, Ron found the problem and got it working. Here are some pictures:

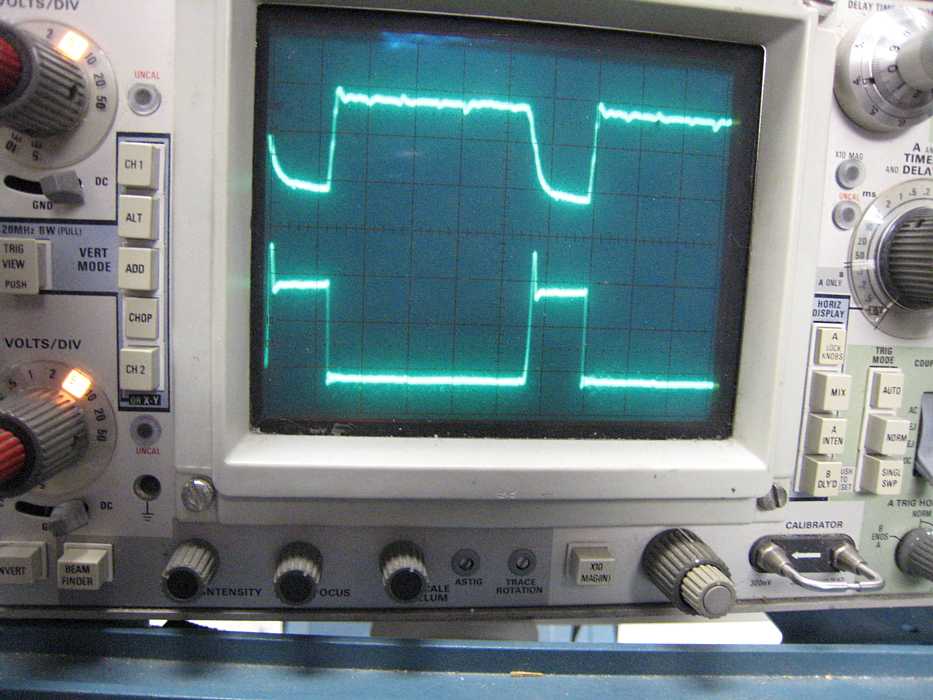

After card replacement
See Slow Circuit below.
The signals should be mirror images of each other. The fact that the output signal (top trace) is so clean with a working board is Very Good. This signal is only used for the Z instruction. (The slow rise time seen on other signals in the machine that continues to cause intermittent Check Resets still needs to be debugged.)
If I'm remembering correctly from the machine schematics, the section that is bad is the circuit with T4, so Tim, if you have a chance, it would be interesting to find out if only T4 on that board is bad (and just how bad T4 is).
The bad board was placed in a plastic baggie, tagged with a yellow stickie, and placed into the "bad boards" box. Ron made plenty of notes to document this in the various logbooks, etc.
p.s. to Tim: I got the initial loader program to work. Now I can get the full relocating loader going by using this absolute loader. It's pretty cool: no more piles of "setwm" instructions! It's 99 characters long.
Wed April 11 - general
- Present were: Ron Williams, Bob Erickson, Glenn Lea, Allen Palmer, Joe Preston, Chuck Kantmann, Frank King, Robert Garner, Ed Thelen
Robert Garner was found this waiting for him. We presume it was crafted by Ron Williams in memory of all the struggles we have had with this big 1401 project. Greek Mythology, here it is, Sisyphus struggled with the rock on the mountain -
OH - that reminds me - I asked Jim Somers if I could start a new rumor - That the 1401 crew was going to be treated to a project third anniversary formal (black tie and tails) cocktail and dinner party, with brass band complete, at the Fairmont Hotel.
- Jim replied that the plans were a bit more modest - a combined something (with 1602, PDP-1, 1401, and ? groups) at the Computer History Museum, in ?late June?. I think Jim said something about free apple juice. Oh well - reality strikes again ;-))
The meeting was most informative - Robert and I learned a lot more than did Jay McCauley :-)) Did you know that the museum has at least four major "Special Interest Groups" run by volunteers (not including the various restorations)?
Robert Garner and Ed Thelen went off to meet with Jay McCauley about what the Information Technology group could do for the 1401 group.
- - IT Corporate History SIG
- - Software Preservation SIG - Bernard Peuto
- - Software History SIG
- - Semiconductor Industry SIG - David Laws
- and is there a Disc History SIG? - Jim Porter
all the above collect oral histories and documentation.
Hmmmm - what ever happened to the oral history, collected by "the museum" from Bob Erickson mid last year?? ?? Will we have to collect one ourselves and transcribe it ourselves? It would be nice to have Bob Erickson still with us to correct and enhance it. Bob is over 85 years old, what ever priority that indicates. Maybe "the museum" will give us a copy to transcribe so some effort is not duplicated.
- Allen Palmer and Glenn Lea continue reassembling the rebuilt 729 tape units
Frank King continued working on the input hopper/throat jam problem in the 083 sorter. The picker knives were evidently not sufficiently bad to be causing all the problem - replacement picker knives (from the 1402 punch) did not fix the problem.
Frank King was greeted with this sign. Sublty is not our strong point, kidding certainly is, and if you can't give/take a jazzing - life can be tough ;-))
Ron Williams struggled to understand a hot wired switch (behind the operator's panel) connected to this (field modified/enhanced) SMS card.
- It is hard to be properly sympathetic with Ron - he has such impish humor. ;-))
Bob Erickson started working on remaining problems in the upper 8,000 memory addresses. Here he is on the floor again - I though computers were supposed to be an intellectual challenge. This time power is off - he is working on circuits that are not coil/transformer isolated.
The 1401 was designed before high speed (0.5 microsecond) high current (500 ma) transistors were commonly available. As a result, there was a whole cult of using "switch cores" to drive the memory cores. Lower current transistors could drive the 12 turns on the switch core to drive the 2 turns that drove the 1/2 select memory cores with 6 times the current (and 1/6 the voltage).
- And to save logic and switch cores, the switch cores also were driven as 1/2 current (requiring coincidence from two drive sources to flip.
- A refresher on core flipping
- The general game, referring to the above two switch core planes, was that the left plane of switch cores were coincident current "selected" by the units and tens address characters (remember this is a decimal machine) and drove say the X select wires in the main memory stack -
- and the right hand plane of switch cores were coincident current selected by the hundreds digits and thousands decoding of the address and drove the Y select wires in the main memory stack.
During lunch, Bob Erickson (who had worked on Williams (CRT) memory before core memory) started to draw something like this to help refresh "the rest of us". (Bob regards any core memory as much more reliable than any Williams Tube memory.)
- The upper left quadrant is the units/ten decode and switch cores
- The upper right quadrant is the hundreds/thousands decode and switch cores
- The lower part is one part of one core plane, not shown is the X and Y drive threading through all core planes.
Have I confused you yet? If not, please explain the above to me ;-))
Fortunately, two years later, when I was studying a then state of the art machine, fast high current transistors were readily available and "in" - switch cores were "out", and I didn't have to strain my brain :-)))
This is a grandson, Mason, who clearly is not yet a "touch typist". Remember when mostly girls took typing in high school? I was intimidated, so bought a "how-to" book and learned on my own time :-))
Sat April 14 - 2nd Sat - Volunteer Day
During the weekend, Mike Cheponis worked on the slow circuit problem above - below are the e-mails
- Present were Ron Williams, Bob Erickson, Tim Coslet, Joe Fredrick (PDP-1 Group), Ed Thelen. After a free (Volunteer Day) Chinese food lunch, Mike Cheponis came by. Joe and Mike stayed til about 5:00
Joe Fredrick brought in a Tecktronic current probe and support chassis to help diagnose the upper 8,000 character memory problems. The probe had arrived after the PDP-1 group fixed their memory problem - and so this was its first real use.

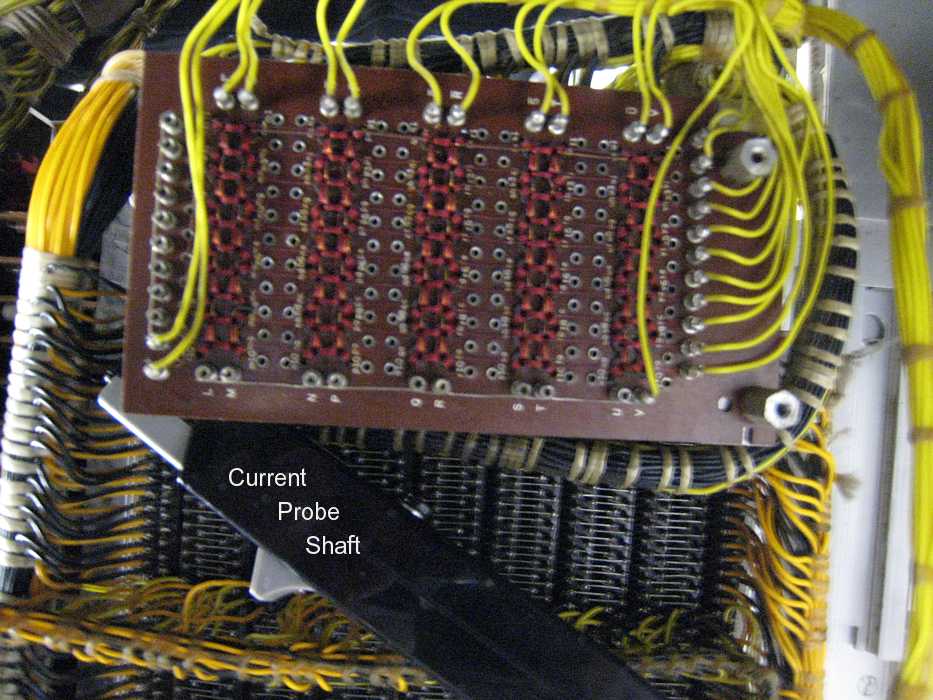

Joe reading the manual - trying to get the current probe probing. The top trace is the half select coming out of a switch core driving a half select line in the memory stack. About 250 ma max.
The bottom trace is the memory cycle trace, one positive pulse every read/re-write cycle. :-))

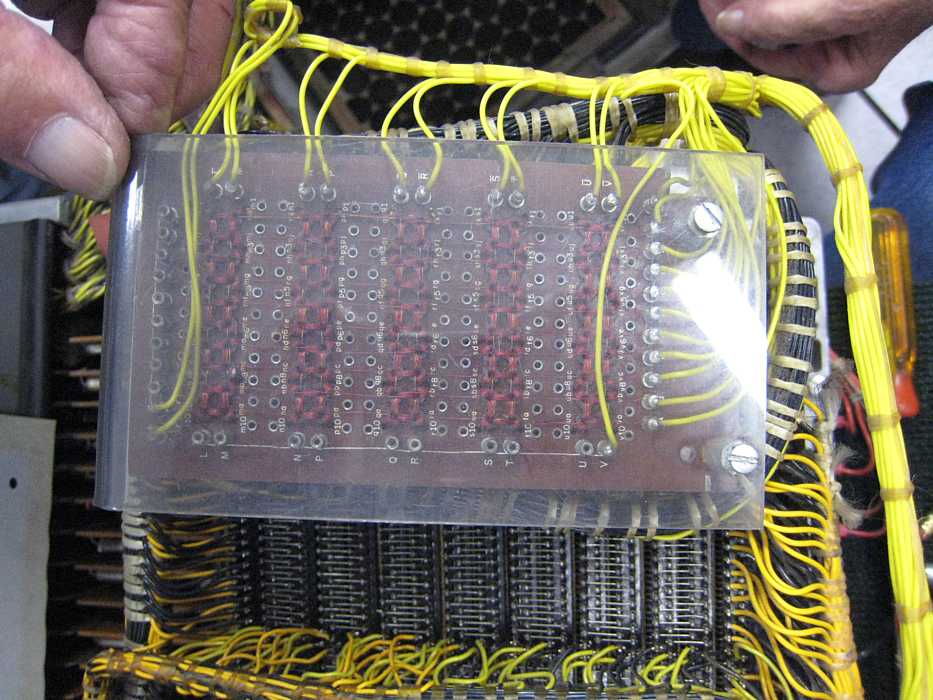

To the right are switch cores, basically high hysterisis cores flipable by 2 half select lines, with a 6-1 turns ratio to enable high (about 250 ma) current output from limited current input. And to the right are "terminating resistors that we think limit the switch core current when driven by voltage logic. (We think the schematics are incomplete - good enough for field folks who can send difficult problems back to service centers?
- Dag Spicer had given the 1401 group permission to closely examine (open up) at the IBM 513 reproducing punch in invisible storage. This unit is of considerable interest so that we can reproduce card decks. (We are having trouble getting the 1402 Card Reader/Punch to be reliable enough to trust reproducing card decks.) It would also look "period" in a display of 1940s IBM equipment :-))
Bob Erickson says that the spit out parts are nearly impossible to repair. The programmers think it is nice to have sequence numbers in columns 72-80. Object decks use these columns also. As far as Bob is concerned, this unit is fine for display - too much of a lifetime to get it going again.
See Slow Circuit below.
Ron Williams found another "slow pulse", this time in the write WordMark control circuit. As late as it is, it works correctly 99.99 % of the time. Tim is conjecturing that a 300 pf "speed up capacitor" is open? And here is a good card in the same circuit.
Dan also remembered a very simple practical exercize that might help demo programming.
Dan McInnis came by suggesting that we have a 1401 confidence test program. This would help assure the demonstrating docent that the machine was functioning well enough to run demonstration programs. He also volunteered to write it. To the left is the preliminary contract
- The tale involves the sale by (the wrong tribe?) Indians (Native Americans) of Manhatten to the Dutch for a reputed $24 worth of beads. Assuming the tribe invested $24 at say 4% for all these following years, and didn't take any out for firewater, bingo, a nice cruise, Federal/State/Local taxes, lawyers ... How much would the tribe have now? Almost anyone is sympathetic to the Indians, is interested in money, ...
- Here is one analysis of the result
- Mike Cheponis and Joe Fredrick stayed later and practiced operating the front panel, with little exercise routines.
You may be surprised to learn that they [the speed up capacitors] are OK (!). I tested them at 10 kHz on my cap meter, and at a higher freq. Test setup for higher freq: | | R=612 ohms >-----| |----+-----/\/\/\/\/---------- gnd | | | Vi Vo I set the sig gen to 10.0V p-p sin-wave, and then tweaked freq of sig gen until Vo = 5.0 V p-p (meaning Xc = 612 ohms).  Xc=1/jwC so C=1/jwXc For one cap, C1 was 396 pf @ 657 kHz For other cap, C2 was 414 pf @ 628 kHz. ----- We can substitute in these "bad" caps for the other two "good" caps and my bet is that we won't see any difference to the "good" sections - that is, these caps will work fine. So I suspect the two transistors are hosed. -Mike  The reason for the 612 ohm value was that's what I got when 470 series with 150 ohms came out to, and the back-of-the-envelope said 1 MHz should have been the same Xc; but the caps were larger than that so the point was lower in frequency.
Ed Thelen's remark - Interesting!! Tim's curve tracer caught some wierd effects at 60 Hz in 2005 where transistors acted similar to reactive components. (We were conjecturing these were heating effects?) Now it appears we must also test at rated speed to check for speed compliance. Interesting world!!
So during a lull in tonight's 1620/PDP-1 meeting, Tim and I headed over to the 1401 lab for some further checking. Tim brought some 330 pf ceramic caps, and one was quickly soldered in and tested and... no difference! No overshoot, like there should be. After some further back and forth, we ended up re-installing the suspected bad caps (so that now all the caps are original) and replaced T2 and T4 transistors with approved parts from the list for the 083 type transistor. After those two transistors were replaced, the card appeared to work normally on the bench test setup. The card is in the plastic baggie, and is placed on "Ron's" document holder (which normally sits between the 1401 and 1403). If he gets a moment, maybe he can try this repaired card in the machine to make sure it works. ---- What's a little disturbing is that the curve tracer, operating at 60 Hz, didn't catch this transistor failure. My guess at this point is that the bad transistors' Cbe (base to emitter capacitance) is abnormally high, therefore, any HF energy that one might expect from a Miller speed-up cap gets dumped into that junction. I have the bad transistors and I'll work them up into a simple wideband amplifier circuit and see what the frequency response turns out to be. -Mike
Wed April 18 - generalPlease see Slow Circuit above, (appended after the Saturday report was posted)
- Present were Ron Williams, Bob Erickson, Glenn Lea, Joe Preston, Robert Garner (thanks for the bagels), Ed Thelen.
Ron Williams explained some of the bugs that bad word mark circuitry can produce. In this example, the circuit failed during the summation of the 8 + 8 giving the 16. The zero suppress operation, reading from left to right hit a word mark and quit suppressing zeros, giving the leading zeros on the 16. The next add operation, adding the 16 + 16 hit a word mark at the 6 and added 6 + 16, giving the 22. The intermittent word mark circuit started working again, giving the rest of the page.
Bob Erickson had a change of mind about working on the sick IBM 513 Reproducing Punch above. Dag Spicer gave us permission to further evaluate the machine. Chris Garcia and ??? moved the machine into "our" 1401 Restoration Area.
- That mass of relays left of the shoe connector near Bob's leg is an add-on to disconnect the 513 from a driving machine when it is "off-line" doing reproducing rather than summary punching.
- Glenn Lea just quietly worked on tape stuff, and didn't get rowdy with anyone ;-))
There was some kind of new problem with the 1406 add on memory. Joe Preston found an old cold solder joint that could move and be intermittent - Bob Erickson re-soldered it and that seemed a permanent fix for that problem.
Ron Williams restored the switch on the maintenance console to its original function. see Hot Wire above. He then carefully removed the masking tape label that had been applied so many years ago to indicate the field wired change.
While some of the above was going on, Ed Thelen was upstairs "Xerox"-ing two manuals. Bob Stetson came by and commented that is father had worked for IBM, and that Bob had some momentos in his office.
More problems remain in the upper 8,000 characters of memory. Here, the top signal, from a sense amp, is "good", a "one" and the lower signal, although looking rather good and of sufficient amplitude, is read as a "zero". We currently do not understand what is going on. Appropriate boards have been swapped and replaced, (we think - the schematics do not seem complete) and still the problem remains. (I didn't get a picture of the sample pulse.)
- The test setup on the right gives the repeating sequence for scoping as seen on the left.
- Frank King (and others?) can also come in on Tuesdays as well as Wednesdays. This can better match the Tuesday (evening?) activities of the IBM 1620 and DEC PDP-1 groups - the members of which are providing more and more help to the 1401 group.
Wed April 25 - general
- Present were Ron Williams, Bob Erickson, Joe Prescott, Grant Saviers, Robert Garner with bagels, and Ed Thelen. After noon Mike Cheponis came in.
- The new key punch that Robert Garner purchased and had transported from the mid west arrived late last week.
from left, Joe, Robert, Ron
Actually looks not bad :-))
Joe was vacuuming, and heard the rattle of something getting sucked in.
Well, lets see what it is :-|
- Dan McInnis has offered a Demo Assurance Program to help verify that the 1401 system is capable of performing intended demonstrations. His preliminary specification is here. Running this program (successfully) will help assure docents and demonstrators that the system is "OK".
some fun details -
The 513 card punch -
A friendly looking group

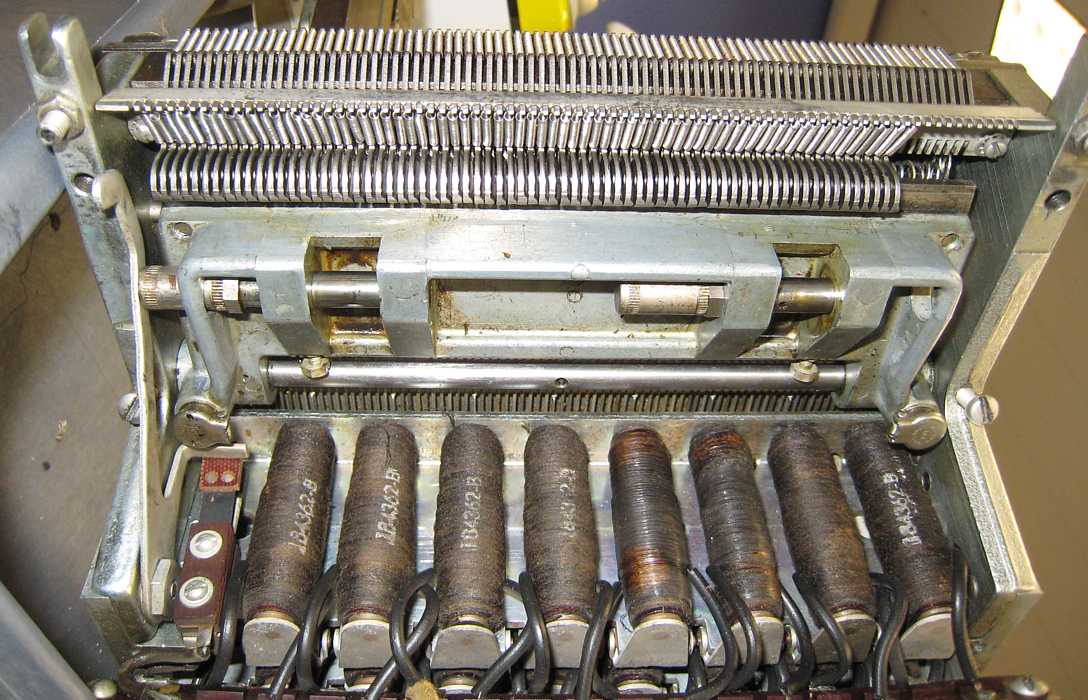

Examining Punch Dies
wiring - The motor generator works,
- Ed Thelen gets no fun :-((
Special read brushes, four shown, when connected with the
patch panel, can cause useful variations in punching
The gear box - obviously needs oil
and an oil change. ;-))
- note the pipe we uncapped and the tunafish oil drain can
The coils of wire (upper left) is the start cycle relay
Red Shield removed, Bob says all gears behind the shield have jerky motion to move the card between punch rows
now for the gory details :-((

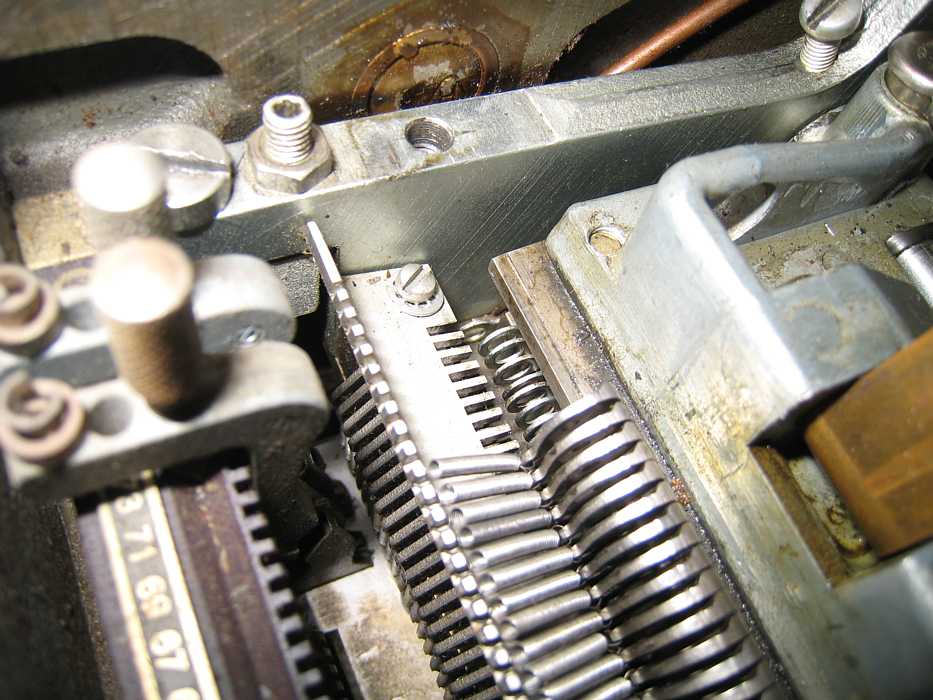

This is the bar that Bob feels was left disconnected, and caused such devistating damage some years ago.
Hard to miss warning

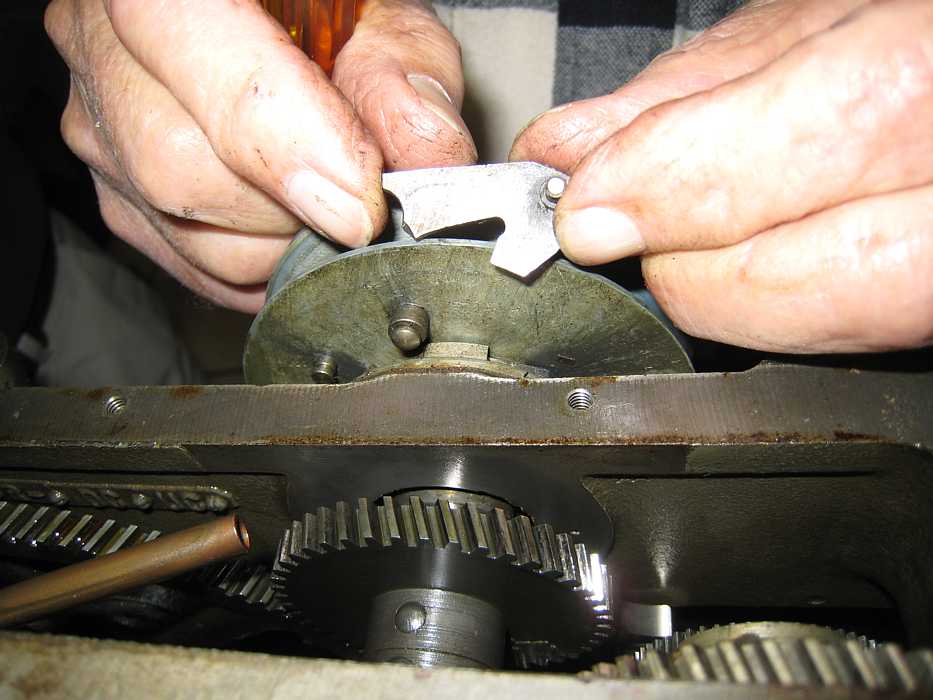

Broken pawl to prevent someone from reversing machine and damaging read brushes
Grant holding some of the about 10 broken punches of hardened steel
- Three of Bob Erickson's grand"children" visited. (They appear to be in their late teens.) We had a great time. Bob got lots of huggs - I think the rest of us were a little jealous? Each of them keypunched their name into IBM cards, and the cards was placed in the "Visitor Big Print" deck and produced a printout similar to this. We had some excitement as we had forgotten that the first two cards of the deck do not work reliably. (We had to remove them to get the program to run - see below.
- The memory clear pre-loader prepended onto object decks by the AutoCoder assembler does not work. We had to strip off the first two cards of the object deck generated by AutoCoder or face a HALT during the processing of the second card. (See investigation by Mike Cheponis below.)
- Shortly thereafter, John Toole brought in a group, including Barry Boehm (see below). We keypunched Barry Boehm's name and he got a Big Print souvenir :-)) - That was a really interesting group - too bad their time was so short.
Ron and Bob worked some more on the 1406 extended memory
And the job ain't finished
- 'till the paper work is done :-|
- Later - From Mike Cheponis
- Eric stopped up with me to the 1401 room this evening so I could try out some further quick test programs, in order to try to diagnose the latest problem that Ed discovered this afternoon.
Ed was giving some of Bob's grandchildren some standard demo paper out w/the visitor's name when the first two cards of the program loader were causing a check reset light to go on.
Further investigation showed that the initial 2 cards could be removed and the deck still loaded OK to print the demo.
Afterward, it was determined that a "cs 15999" instruction was failing; Ron and I tried to narrow in the range. The program was:
- 1: sw 8,12
- 8: cs x999
- 12: b 1
the "x999" would be I9I (for 15999) R9I (for 14999) etc.
The failure is: the "B" with a wordmark at location 12 is _completely_ gone - all bits in that location are turned off, not even a check bit is on; this is, of course, invalid as well as strange, as the clear storage instruction is only supposed to clear (up to) 100 positions of core, NOT to be wiping out op codes and turning the next instruction into an invalid blank!
I made 16 cards that cleared storage on the addresses 15999, 14999, ...., 1999, 999 (these cards are now on top the 1402), and tried them one at a time. The rationale was that although it could be done via panel switches, that can be error-prone, and also because it was easy to try the 16 programs to see which ones worked, and this could be done systematically.
If the address was 7999 or below, the program worked normally.
If the address was 8999 or above, the program failed as described, above.
(I did not try to clear storage of 8000 [should clear one location] to see if it also causes the problem - I suspect so).
So it would seem that clearing storage on an address above 8000 causes the next instruction after the "cs" instruction to be replaced by all bits off.
This is a new problem, as far as I know.
p.s. John Toole brought Barry Boehm and entourage through the 1401 room this afternoon:
[Barry also got a personalized
- There is a rumor that the tape team, including Allen Palmer, is distracted by amateur rocketry. Apparently there is some rocketry meet in June that they are preparing for. (See formal correction here.)
Sat April 28 - 4th Sat
- Present were Ron Williams, Bob Erickson, Tim Coslet, Ed Thelen.
As reported above, Ed Thelen is searching desperately for some reason to take the 513's motor-generator apart - for further "examination". ;-)) Unfortunately, the motor generator works, and looks in almost new condition. ;-(( Here is the almost new looking commutator and one of four almost new looking brushes. Probably a good idea to temporarily put Zerk fittings on the end bearing assemblies and inject some grease.
Here is the field resistor for the 40 generator part of the 513's motor generator. It is shorted out by that black wire - we think that is not a good sign. Will test the no-load and loaded voltage output "next time".

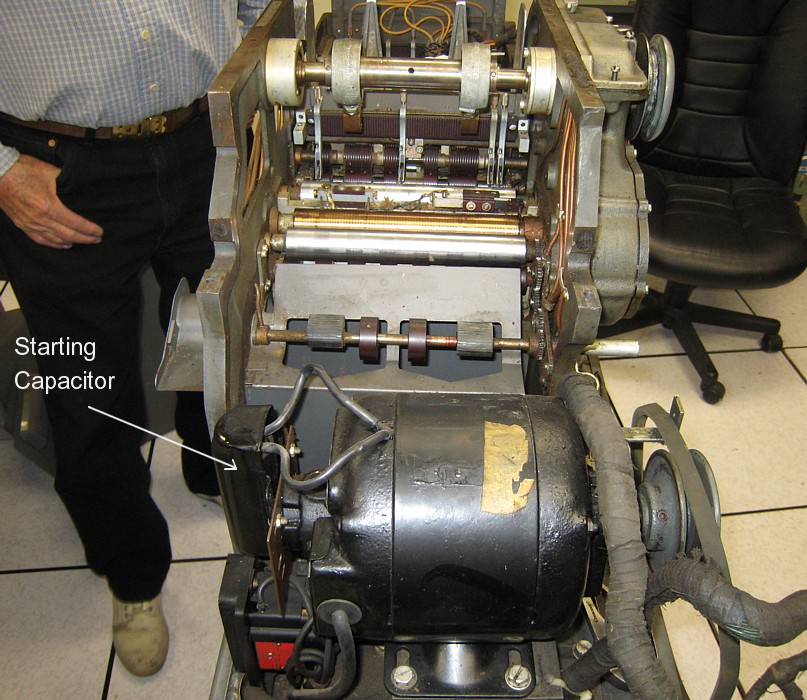

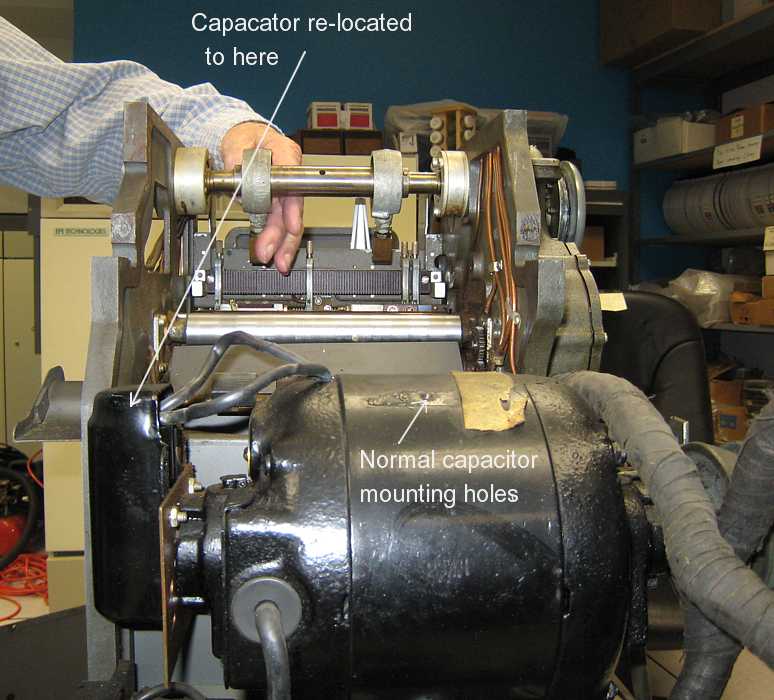

Speaking of motors, look at the 513's starting capacitor that IBM moved. Why? To make room for the punch magnet assembly. As Ron Williams said, "I bet there were some bad words said about that."
1406 Expanded Memory - Background - The 4,000 character core bank sense windings are connected to two amplifiers
- - a pre-amp, followed by a final amp.
The preamp presents a terminating load on the sense winding of 400 ohms, and converts bipolar pulses to positive pulse currents.
- The positive pulse current is fed into the final amp, where it is ORed with the outputs of the other three core banks
- Tim Coslet reported that his in-circuit tester found on the sick SenseFinal-AQX-Card:
- a) 3 of 4 transistors had a gain below 5, lowest he can measure - didn't fix what wasn't broke
- b) pin "G" - the one reported bad - did not diode between the base and emitter :-(( - replaced
- Ron Williams found two more bad sense final amplifiers bad - always pin "G" - strange -
- We are running low (like 3 left) of 083 transistors
